china flexible elbow manufacturer

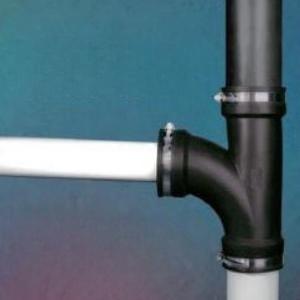

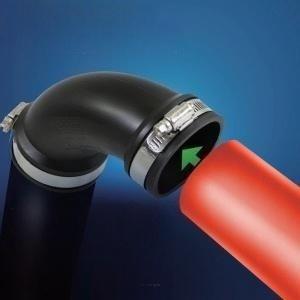

HengWei flexible Tees and Elbows couplings allow up to 90°connections of all common household drain, waste and vent pipesquickly andeasily without using special tools or fittings. Becausethey’reexceptionally flexible and long, they’re the ideal replacementforfittings at the joint during alteration or repair, Reducing sizesaremade with separately supplied Qwik Bushings.

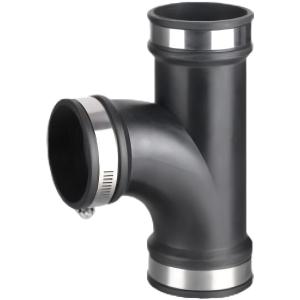

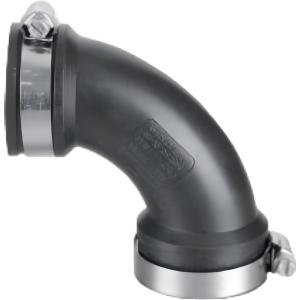

flexible elbow and flexible tee pipe coupling
features
- Creates tee and 90°
- Length allows cut-out fittings
- Flexibility results in easy installations
- Reducing is possible with insert Bushing300 series stainless steel clamps
specifications
- For use with Cast lron, Plastic, Steel, Copper or Lead pipe
- Leak-proof, rot-proof and resistant to chemicals, ultravioletrays, fungus growth, and normal sewer gases
- Conforms to ASTM D5926
- Designed for above ground drain, waste, and vent use only
- Do not use in pressure applications
- Maximum operating temperature: 1400 F non-consistent

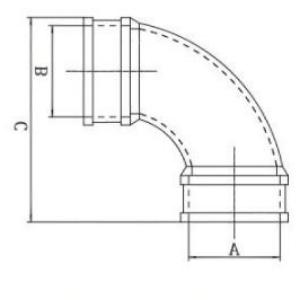

flexible elbow specification table
| Part NO. | A | B | C | |||
| in | mm | in | mm | in | mm | |
| HW-FE150 | 1.89 | 48 | 1.89 | 48 | 1.89 | 48 |
| HW-FE200 | 2.32 | 59 | 2.32 | 59 | 2.32 | 59 |
| HW-FE300 | 3.43 | 87 | 3.43 | 87 | 3.43 | 87 |
| HW-FE400 | 4.45 | 113 | 4.45 | 113 | 4.45 | 113 |

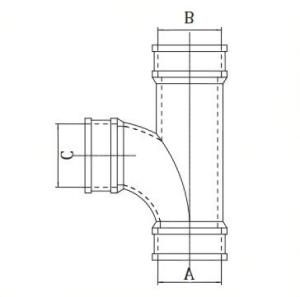

flexible tee pipe coupling specification table
| Part NO. | A | B | C | |||
| in | mm | in | mm | in | mm | |
| HW-FT150 | 1.89 | 48 | 1.89 | 48 | 1.89 | 48 |
| HW-FT200 | 2.32 | 59 | 2.32 | 59 | 2.32 | 59 |
| HW-FT300 | 3.39 | 86 | 3.39 | 86 | 3.39 | 86 |
| HW-FT400 | 4.53 | 115 | 4.53 | 115 | 4.53 | 115 |
