china flexible pipe cap manufacturer

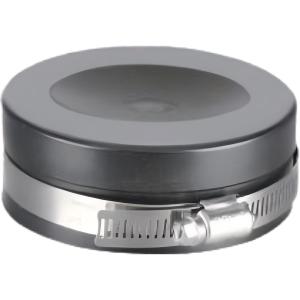

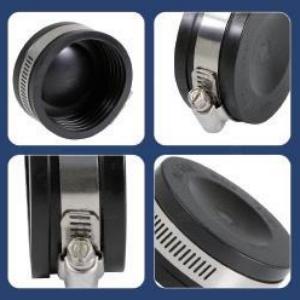

Qwik caps offer a quick, easy way to cappipe ends, test pipes and clean-outs.Made of flexible Pvc, their durabilitycauses them to be suitable forabove-ground or under-ground use.

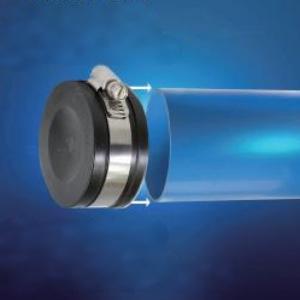

To install, simply place over open end of pipe and tighten to 60″ lbs. of torque.Remember to hand tighten when installing on corrugated pipe.
It is typically used before piping system installation to protect the internal cleanliness of the pipe ends, ensuring their seal and service life.
quick, reusable flexible pipe caps for pipe ends, testing & clean-outs
features
- Fast, easy installation
- Permanent or temporary
- Low cost and reusable
- Convex face minimizes ballooning
specifications
- Flexible Pvc Gasket complying to ASTM D 5926
- 300 stainless steel clamps

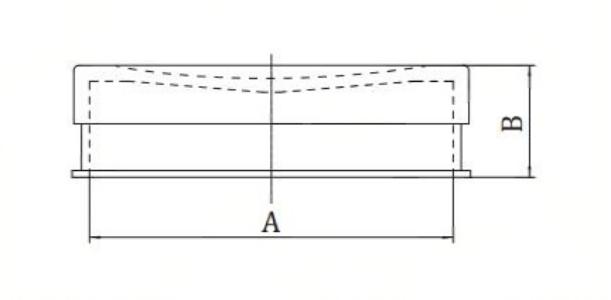

flexible pipe cap specification table
| Part NO. | A | B | Structure | ||
| in | mm | in | mm | ||
| HW-C101 | 1.89 | 48 | 1.14 | 29 | Standard version |
| HW-C102 | 2.40 | 61 | 1.24 | 31.5 | |
| HW-C103 | 3.52 | 89.5 | 1.39 | 35.4 | |
| HW-C104 | 4.53 | 115 | 1.65 | 42 | |
| HW-C105 | 5.63 | 143 | 2.09 | 53 | |
| HW-C106 | 6.61 | 168 | 2.20 | 56 | |
| Part NO. | A | B | Structure | ||
| in | mm | in | mm | ||

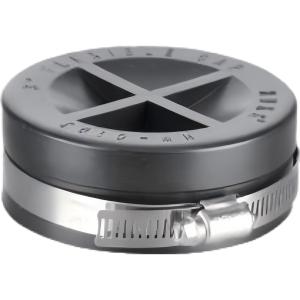

| HW-C101X | 1.89 | 48 | 1.14 | 29 | Cross-shape strengthening rib |
| HW-C102X | 2.40 | 61 | 1.24 | 31.5 | |
| HW-C103X | 3.52 | 89.5 | 1.39 | 35.4 | |
| HW-C104X | 4.53 | 115 | 1.65 | 42 | |
| HW-C105X | 5.63 | 143 | 2.09 | 53 | |
| HW-C106X | 6.61 | 168 | 2.20 | 56 | |
