china mini worm drive hose clamp manufacturer
Compliant with the SAE J1508, Type “M”

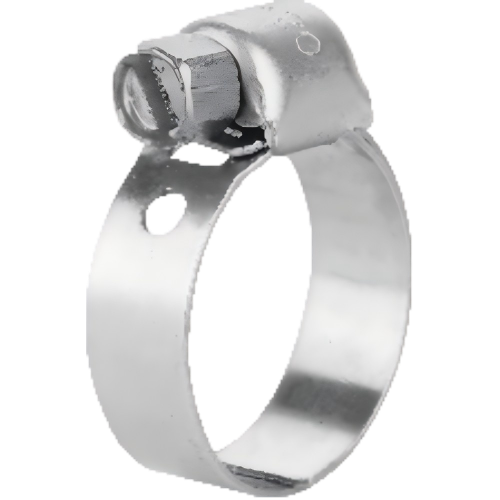

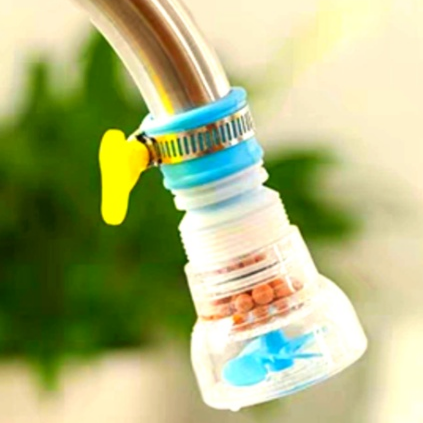

Mini worm drive hose clamps are worm gear driven hose clamps, widely used in fasteners in engineering, home furnishing, and other fields. They have advantages such as corrosion resistance and high temperature resistance. Structurally, the steel strip teeth of the mini worm drive hose clamp are formed with through holes, which enhances the reliability of the meshing between the strip and the thread, making the connection between the steel strip and the connected accessories more secure.

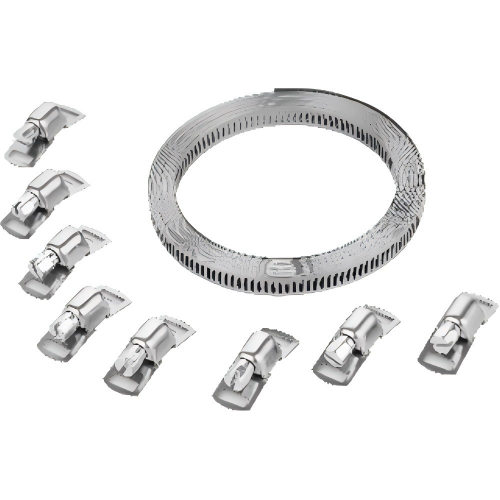

basic structure of mini worm gear hose clamp
screw
Multiple materials, head size, and screw slot types are available for selection
housing
A warp-around design
band
The through-hole design enhance the fimness of engagement between the band and the thread
XM08Q
Band
Stainless Steel
Housing
Stainless Steel
Hex Head
Stainless Steel
XM08B
Band
Stainless Steel
Housing
Carbon Steel or Stainless Steel
Hex Head
Carbon Steel or 400 Series Stainless Steel
HWKG provides following mini worm drive hose clamps
8mm mini butterfly hose clamps
mini worm drive hose clip Parameters
mini worm drive hose clip configuration table
| SPECIFICATION | MATERIAL | BAND | HOUSING | SCREW |
| XM08T | W1 | carbon steel | carbon steel | carbon steel |
| XM08B | W2 | 200/300 series stainless steel | carbon steel/200/300 series stainless steel | carbon steel |
| W3 | 200/300/400 series stainless steel | 200/300/400 series stainless steel | 400 series stainless steel | |
| XM08Q | W4 | 200/300 series stainless steel | 200/300 series stainless steel | 200/300 series stainless steel |
| W5 | 316 stainless steel | 316 stainless steel | 316 stainless steel | |
| Customization of specifications and material configurations is available based on customer requirements. The above information is for reference only and should not be considered as technical specifications. | ||||
mini worm drive hose clip specification table
| SAE Size No. | RANGE | SPECIFICATION | |||
| RANGE mm | RANGE in | XM08Q | XM08B | XM08T | |
| – | 11-20 | 3/8″-15/32″ | • | • | • |
| 4 | 6-16 | 1/4″-5/8″ | • | • | • |
| – | 12-16 | 15/32″-5/8″ | • | • | • |
| 6 | 11-20 | 7/16″-25/32″ | • | • | • |
| 8 | 13-23 | 1/2″-29/32″ | • | • | • |
| – | 16-25 | 5/8″-1″ | • | • | • |
| 10 | 14-27 | 9/16″-1 1/16″ | • | • | • |
| – | 19-29 | 3/4″-1 1/8″ | • | • | • |
| 12 | 18-32 | 23/32″-1 1/4″ | • | • | • |
| 16 | 21-38 | 13/16″-1 1/2″ | • | • | • |
