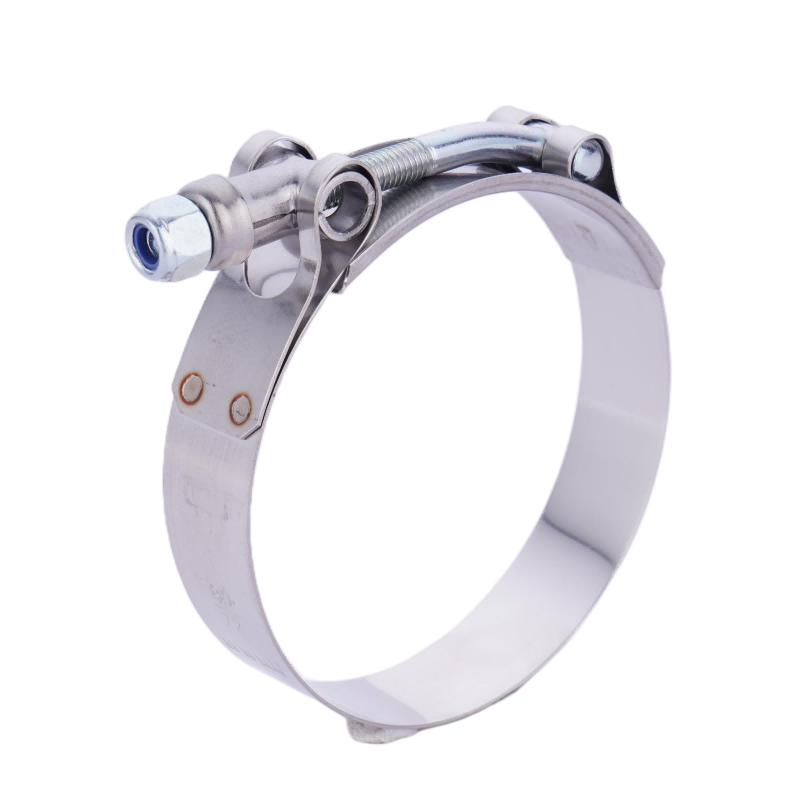

T-bolt hose clamps work better than regular worm drive clamps in hard jobs. They give more clamping force and last longer. This makes them great for places with high pressure and heat. Many people in car and factory work pick these clamps. They need strong, even pressure and no leaks. HWKG’s bolt clamps are special because they use new materials and special designs. They also have important certificates like ISO9001 and IATF16949. These things help them work well and last a long time.
Key Takeaways
- T-bolt hose clamps squeeze tighter than worm drive clamps. This makes them good for places with high pressure.
- These clamps last longer and do not rust easily. They are made from stainless steel, so they work well for a long time.
- It is very important to install them the right way. You need the correct size and must line up the clamp right. This helps stop leaks and keeps the hose safe.
- T-bolt clamps cost more money. But they are worth it for important jobs. They help stop leaks and problems.
- HWKG’s T-bolt clamps follow high industry rules. This means they are good and can be trusted for cars and boats.
T-bolt Hose Clamps vs. Worm Drive
Clamping Force & Leak Prevention
T-bolt clamps provide much higher clamping force than worm drive clamps. This strong grip helps stop leaks, especially in high-pressure systems. Many users choose t-bolt hose clamps for turbochargers, coolant lines, and industrial machines. These clamps use a bolt and nut to tighten the band, which gives even pressure all around the hose. Worm drive clamps use a screw and slotted band, which can create uneven pressure and weak spots.
The table below shows the pressure ratings for both types:
| Clamp Type | Pressure Rating |
|---|---|
| T-bolt Clamps | 150-250 PSI (up to 300 PSI for heavy-duty) |
| Worm Drive Clamps | Up to 50 PSI (soft rubber), 100 PSI (rigid hoses) |
This means t-bolt clamps work better in places where leaks are not allowed. Worm drive clamps may work for low-pressure jobs, but they cannot match the sealing power of t-bolt clamps.
Durability & Corrosion Resistance
T-bolt clamps last longer than worm drive clamps. They use strong materials like stainless steel, which resists rust and damage. Worm drive clamps often use thinner metal, which can bend or break over time. HWKG’s t-bolt clamps use premium stainless steel and special designs. These features help the clamps stay strong in wet, hot, or dirty places.
Common materials for t-bolt clamps include:
- Stainless steel: Stays strong and does not rust, even in water or chemicals.
- Heavy-duty stainless steel: Handles high pressure and stress in factories.
- High-temperature stainless steel: Works in hot exhaust systems without bending.
HWKG’s patented technologies make their t-bolt clamps even better. They give a strong grip and even pressure, which stops leaks and extends the clamp’s life. These clamps work well in tough places, like engines and marine equipment. HWKG holds ISO9001 and IATF16949 certifications, which show their clamps meet strict industry standards.
Installation & Ease of Use
Worm drive clamps are easy to install with a screwdriver. Many people use them for simple jobs at home or in small machines. T-bolt clamps need a wrench to tighten the bolt and nut. This takes a little more time, but it gives a stronger and safer fit.
People must follow installation best practices to get the best results. The clamp should fit the hose size and sit straight around the hose. If the clamp is too big or too small, or if it is not lined up right, leaks or hose damage can happen. HWKG’s t-bolt clamps come with clear instructions and torque settings to help users install them correctly.
Cost & Value
Worm drive clamps usually cost less than t-bolt clamps. They work well for light jobs and where high pressure is not a problem. T-bolt clamps cost more, but they give better performance and last longer. In places where leaks or failures can cause big problems, t-bolt clamps save money in the long run.
HWKG’s t-bolt clamps offer great value because they use strong materials and smart designs. Their clamps pass important tests and hold certifications for automotive and marine use.
People who need strong, reliable hose connections often choose t-bolt clamps. They know these clamps will keep working, even in tough jobs.
Main advantages of T-bolt clamps
High strength
T-bolt clamps are known for being very strong. They are made from good materials like stainless steel. This helps them stay tough and not get rusty. Many companies use t-bolt clamps for hard jobs. These stainless steel clamps securely hold the hose in place, even under pressure or high temperatures.Their strong build stops leaks and keeps things safe. HWKG’s t-bolt hose clamps use new technology and careful checks to make sure each clamp is high quality.
- T-bolt clamps grip tightly in tough places.
- They last longer than most other hose clamps.
- Their strong build does not bend or break easily.
Uniform pressure
A big plus for t-bolt clamps is even pressure. These clamps press all around the hose the same way. This helps stop leaks and keeps the hose safe from harm. Worm drive clamps can make flat spots and weak places, but t-bolt clamps keep the pressure even.
| Feature | T-Bolt Clamps | Worm Drive Clamps |
|---|---|---|
| Pressure Distribution | 360° uniform clamping pressure | Localized flat spots |
| Hose Protection | Smooth inner band prevents cutting | Perforated band can chew into hose |
| Leak Prevention | Consistent pressure prevents leaks | Uneven pressure can lead to leaks |
Many t-bolt clamps have a smooth inside band. This stops the clamp from cutting the hose. It also keeps silicone hoses safe from damage. Some t-bolt clamps have a floating bridge design. This helps the clamp stay round, which is important for sealing air or liquid.
Excellent vibration resistance
T-bolt clamps work well where there is a lot of shaking. Tests show these clamps do not get loose, even after 15 million shakes at high speed. This makes them a good pick for engines, machines, and cars that move a lot. HWKG’s t-bolt clamps pass hard tests for shaking and heat to show they are strong.
Tip: If your system moves or shakes a lot, t-bolt clamps are a good choice. They keep hoses tight and stop leaks, even in tough places.
Application Suitability for T-bolt Hose Clamps
Turbocharger and intercooler piping
T-bolt clamps are important in turbocharger and intercooler piping. These parts often deal with high pressure and heat changes. T-bolt clamps give a strong grip that keeps hoses tight and stops leaks. Many cars and big engines use these clamps to connect air filters, turbocharger compressors, and intercoolers.
HWKG has many t-bolt clamps that fit these jobs. Their clamps work well under high boost and shaking, so they are a top pick for fast cars.
Coolant hose
Coolant hoses face high heat and pressure. The basic structure of the T-bolt clamp has excellent high-temperature resistance. The nylon self-locking structure can withstand temperatures up to 250℃, while the all-metal self-locking structure can withstand temperatures up to 500℃. Especially spring loaded t bolt clamps, work very well here.Their stainless steel does not rust, and the spring lets the clamp move as the hose gets bigger or smaller. This keeps the seal tight, even when the temperature changes fast. HWKG’s t-bolt clamps help stop leaks and keep engines safe.
Tip: For coolant hoses in cars or trucks, use t-bolt clamps with a spring for the best seal.
Marine or heavy machinery applications
Marine and heavy machines need clamps that fight rust and hold tight. HWKG’s t-bolt clamps use marine-grade stainless steel and come in many sizes. They work with UV-resistant hoses and strong silicone hoses. The table below shows the main features:
| Feature | Description |
|---|---|
| Durable Construction | Works well in salty or tough places |
| High Clamping Force | Keeps a tight seal under pressure and shaking |
| Stainless Steel Build | Does not rust or corrode |
| Customizable Sizes | Fits many hose and pipe sizes |
When picking a clamp, think about the material, size, pressure, and how easy it is to put on. Sometimes, t-bolt clamps are more than you need. For low-pressure lines or simple home fixes, worm gear, spring, or ear clamps might be better. The table below compares the choices:
| Hose Clamp Type | Advantages | Applications |
|---|---|---|
| Worm Gear Clamps | Cheap, easy to use | Washing machines, low-pressure lines |
| Quick Release Clamps | Fast to put on and take off | Racing, labs, food processing |
| Spring Clamps | Changes with temperature | Car cooling systems |
| Ear Clamps | Strong seal, quick to install | Fuel lines, car cooling systems |
HWKG’s t-bolt clamps are great for hard jobs, but always pick the right clamp for your job.
FAQ
What makes T-bolt hose clamps different from worm drive clamps?
T-bolt hose clamps use a bolt and nut for tightening. This design gives more even pressure and higher strength. Worm drive clamps use a screw and slotted band, which can create weak spots.
Where should someone use a T-bolt hose clamp?
People use T-bolt hose clamps in high-pressure systems. These include turbochargers, coolant hoses, and heavy machinery. The clamps work well when leaks are not allowed.
How does HWKG ensure the quality of its bolt clamps?
HWKG uses advanced machines and strict checks. The company holds ISO9001 and IATF16949 certifications. These show that HWKG meets high industry standards.
Can T-bolt hose clamps resist rust?
Yes. T-bolt hose clamps from HWKG use stainless steel. This material fights rust and works well in wet or salty places.
Are T-bolt hose clamps easy to install?
T-bolt hose clamps need a wrench for tightening. HWKG provides clear instructions and torque settings. This helps users install the clamps correctly and safely.
