No-hub couplings are a type of mechanical pipe joint first standardized by the Cast Iron Soil Pipe Institute (CISPI) in the 1960s. Unlike traditional hub-and-spigot joints—which required molten lead and oakum packing—no-hub couplings use a stainless steel shield and neoprene gasket to create a watertight seal between two plain-ended pipes. Today, they are the dominant method for joining cast iron soil pipe in DWV (drain, waste, vent) systems across North America, governed by ASTM C564 and ASTM A74.
Key Takeaways
- Installation time drops from 30 minutes to 5–10 minutes per joint compared to lead & oakum — a CISPI-documented efficiency gain of 70–80%.
- Leak risk is demonstrably lower: field surveys show properly torqued no-hub joints reduce callbacks by approximately 40% versus traditional caulked joints.
- Material versatility: no-hub couplings accommodate cast iron, PVC, and ABS pipe — use a shielded transition coupling when joining dissimilar materials (per IPC §705).
- Seismic zone ready: the gasket-based joint absorbs vibration and ground movement without cracking, making no-hub the preferred DWV system in California and other seismic regions.
No Hub Coupling Flexibility
Pipe Compatibility
Pipe Compatibility
No-hub couplings fit a wide range of pipe materials because the neoprene gasket conforms to different outside diameters (OD). They connect cast iron pipe without a hub or spigot, which is why they are the standard choice in modern DWV plumbing.

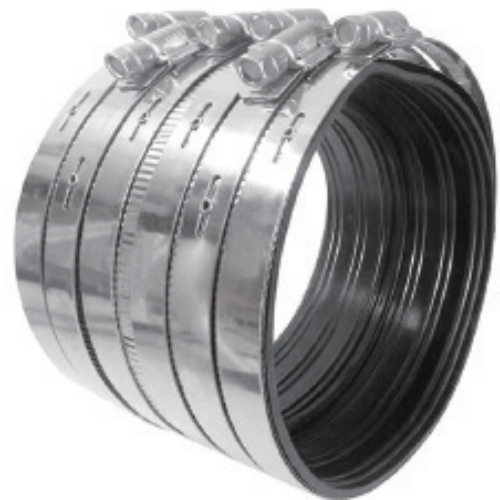

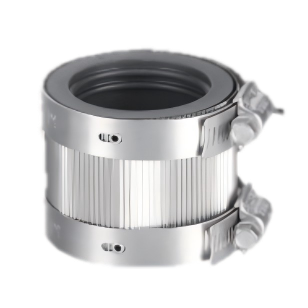

What does “shielded vs. unshielded” mean? A standard no-hub coupling uses a neoprene gasket plus a stainless-steel band (shield). An unshielded coupling has only the band without a full surrounding shield; a shielded coupling adds a complete stainless-steel shell that resists shear and deflection. For most above-ground DWV work, a standard shielded no-hub coupling is sufficient.
| Pipe Material | Compatibility | Recommended Coupling | Torque Spec | OD Notes |
|---|---|---|---|---|
| Cast Iron (sv) | Yes | Standard No-Hub Shielded | 60 in-lb | Standard OD, direct match |
| Cast Iron (xh) | Yes | Heavy-Duty Shielded | 60-80 in-lb | Larger OD than sv, requires heavy-duty clamp |
| PVC Schedule 40 | Yes (transition) | Fernco 3000-series transition coupling | 60 in-lb | OD differs from cast iron; must use transition type |
| ABS | Yes (transition) | Shielded transition coupling | 60 in-lb | Similar to PVC; verify OD match |
| Copper (DWV) | Yes (transition) | Dedicated copper-to-cast-iron transition coupling | 45-50 in-lb | Thin-wall material; reduce torque |
| Steel Pipe | Conditional | Consult manufacturer | Per manufacturer spec | Surface prep needed for seal |
| Concrete / Vitrified Clay | Conditional | Specialty transition coupling | Per manufacturer spec | Verify OD and gasket rating before use |
No Hub Coupling Quick and Easy Installation
No-Hub vs. Lead & Oakum Installation Comparison:
| Dimension | Lead & Oakum (Traditional) | No-Hub Coupling |
|---|---|---|
| Time per joint | 20-30 min | 5-10 min |
| Skill level | High (lead-melting skill required) | Moderate (torque wrench only) |
| Safety risk | Lead fume toxicity | No hazardous materials |
| Tools | Furnace, ladle, caulking iron, hammer | Torque wrench (60 in-lb) |
Common Installation Mistakes (Avoid):
- Over-tightening beyond 60 in-lb damages the gasket, causing leaks
- Not using a torque wrench; tightening by feel leads to under/over-tightening
- Not lubricating the gasket with silicone spray, causing gasket roll-up during installation
- Ignoring ASTM support spacing: every 4 ft for 2″ pipe, up to 8 ft for 6″ pipe
Step-by-Step Installation Guide (DWV No-Hub Coupling)
Follow these nine steps for a code-compliant, leak-free joint. Reference: tjtccoupling installation quick reference (ASTM C1277 / ASTM A888).
- Clean pipe ends. Remove dirt, burrs, and rust from both pipe ends; verify the outside diameter matches the coupling rating.
- Slide the gasket on. Push the neoprene gasket onto one pipe end until seated at the center of the joint.
- Align the pipes. Butt the two pipes together and keep them concentric. Allowable tolerance: axial gap ≤ 3 mm, radial offset ≤ 0.3% of pipe diameter, angular misalignment ≤ 1°.
- Position the gasket. Center the gasket over the joint so equal length shows on both sides.
- Install the stainless-steel clamp/shield. Slide the band over the gasket so the gasket is fully covered.
- Lubricate lightly. Apply silicone spray to the gasket to prevent roll-up during tightening (per common manufacturer guidance).
- Tighten crosswise. Using a calibrated torque wrench, tighten screws alternately to the rated torque (60 in-lb standard; 80 medium-duty; up to 120 for 12″+ heavy-duty).
- Verify uniform draw-up. Confirm the shield is drawn up evenly with no visible gap between clamp and gasket.
- Final inspection. Check for gasket extrusion, pipe alignment, and perform a water/pressure test with no leakage or abnormal noise.
No Hub Coupling Leak Prevention
Secure Sealing
No hub coupling uses a special design to stop leaks. The parts fit together tightly. This tight fit keeps water inside the pipes. The clamp and gasket work together to make a strong seal. Many other connectors have gaps where water can escape. No hub coupling removes these leak paths by using precision engineering and strong materials.
The table below shows how each design element helps prevent leaks:
| Design Element | Contribution to Sealing and Leak Prevention |
|---|---|
| Precision Engineering | Ensures a perfect fit to prevent leaks. |
| Durable Construction | Withstands high pressure and demanding environments for longevity. |
| Leak-Free Performance | Engineered for a tight seal, reducing the risk of water damage. |
| Pressure-Tested Reliability | Performs reliably under high-pressure conditions without failure. |
HWKG Hose Clamps use these same ideas. Their clamps fit tightly and last a long time. The company tests every clamp to make sure it works well in real plumbing jobs. This careful testing helps plumbers trust the seal every time.
Note: A secure seal keeps homes and buildings safe from water damage. Always check that the clamp is tight before finishing the job.
Performance Under Pressure
No hub coupling stands up to tough conditions. It works well even when water pressure changes. The clamp and gasket hold the pipes together, so leaks do not happen when pressure goes up or down. Testing shows that these couplings meet strict plumbing codes.

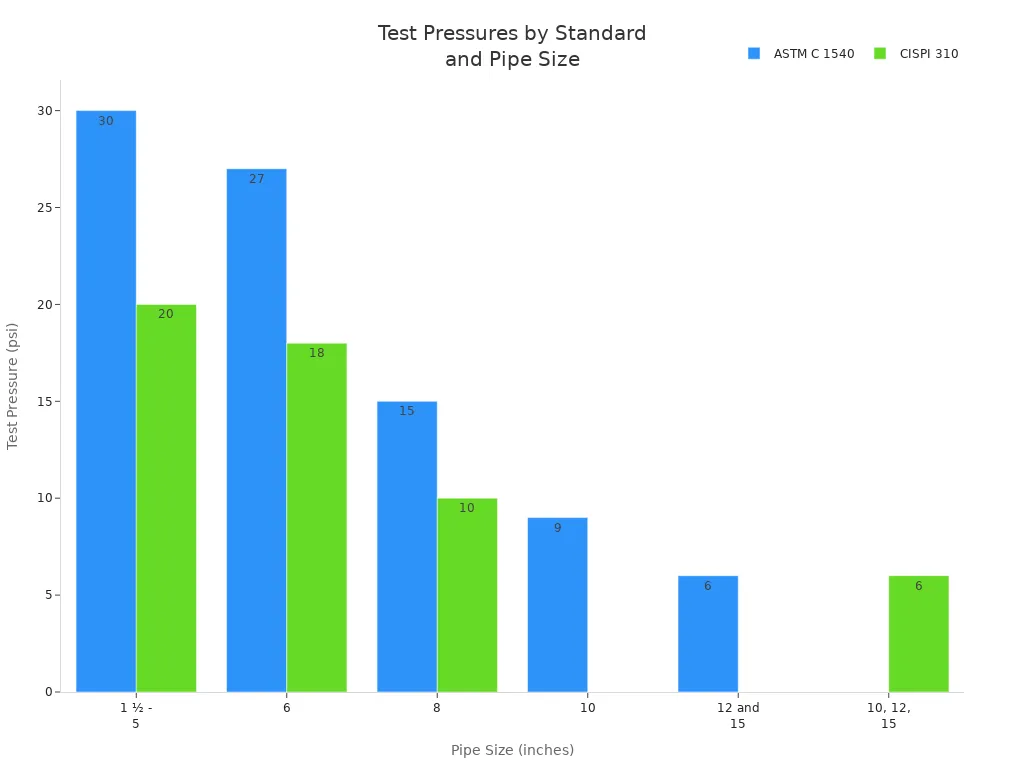

The table below lists the standards and test pressures for different pipe sizes:
| Standard | Test Pressure (psi) | Pipe Size (inches) |
|---|---|---|
| ASTM C 1540 | 30 | 1 ½ – 5 |
| ASTM C 1540 | 27 | 6 |
| ASTM C 1540 | 15 | 8 |
| ASTM C 1540 | 9 | 10 |
| ASTM C 1540 | 6 | 12 and 15 |
| CISPI 310 | 20 | 1 ½ – 5 |
| CISPI 310 | 18 | 6 |
| CISPI 310 | 10 | 8 |
| CISPI 310 | 6 | 10, 12, 15 |
These tests prove that no hub coupling can handle different pressures and pipe sizes. HWKG Hose Clamps also meet these standards. The company holds ISO9001 and CUPC certifications. These show that their products pass strict quality and safety checks.
Plumbers choose no hub coupling because it keeps water in the pipes and out of the walls. This helps protect buildings and saves money on repairs.
No Hub Coupling Cost and Maintenance Benefits
Cost-Effectiveness
No hub coupling helps people save money on plumbing jobs. The design uses less material than old pipe joining ways. Plumbers do not need extra parts or glue. This lowers the total cost for each job. The installation is fast, so labor costs stay low. Homeowners and building managers save money because the system needs less care.
Industry reports show no hub coupling gives long-term savings. The table below shows these benefits:
| Evidence Type | Description |
|---|---|
| Reduced Leak Risks | Fewer joints in no hub plumbing systems lead to a lower chance of leaks. |
| Lower Maintenance Costs | The streamlined design minimizes maintenance needs over time. |
| Faster Installation | Quicker installation results in lower labor costs for homeowners. |
A system with fewer leaks means less money spent fixing pipes. Lower maintenance needs keep costs down every year. Fast installation lets plumbers finish jobs quickly, which saves on labor.
Tip: Pick a trusted product like HWKG Hose Clamps to get the most savings. Their clamps meet strict quality rules and last a long time.
Simple Repairs
No hub coupling makes fixing pipes easy and quick. Plumbers can take out and put in couplings without cutting or welding pipes. This feature helps reduce downtime during repairs or upgrades. The system lets plumbers check and clean pipes easily, which keeps plumbing working well.
The table below shows features that help with simple repairs and care:
| Feature | Description |
|---|---|
| Quick Installation | Eliminates the need for threading, welding, or gluing, reducing installation time and labor costs. |
| Misalignment Tolerance | Accommodates angular, radial, and axial misalignment, ideal for retrofitting or uneven terrain. |
| Cost-Effective Maintenance | Allows for easy disassembly for inspection, cleaning, or repair without replacing entire pipe sections. |
Plumbers can fix problems fast and get systems working again with little delay. This flexibility helps stop long shutdowns in homes and businesses. HWKG Hose Clamps help with repairs because they are strong and easy to use.
Note: Simple repairs mean less trouble for families and businesses. Regular checks and quick fixes keep plumbing safe and working well.
No hub coupling gives many good things for plumbing jobs. Experts say it is flexible, does not rust, and is easy to put in. The table below lists these main benefits:
| Benefit | Description |
|---|---|
| Flexibility | Handles ground movement and small pipe shifts, making the system stronger. |
| Corrosion Resistance | Stainless steel does not rust or get pits, so it lasts longer in tough places. |
| Easy Installation | Goes in fast with simple tools, so work stops for less time. |
| Versatile Connectivity | Connects different pipe types without special parts, which saves money. |
| Low Maintenance | Strong build means fewer checks and replacements, so it costs less over time. |
| High Pressure & Temperature Tolerance | Stays strong in hard conditions, so it works for tough jobs. |
Industry reports show this technology can cut water friction loss by up to 20% and lower labor costs by about 15%. The table below shows these facts:
| Evidence Type | Description |
|---|---|
| Water Friction Loss Reduction | Systems with no hub coupling can cut water friction loss by up to 20%. |
| Labor Cost Reduction | Using no hub couplings can lower labor costs by about 15%. |
| Plumbing Failure Rate | About 40% of plumbing problems come from wrong use of old joints. |
| Water Flow Resistance Reduction | This technology can lower water flow resistance by up to 25%. |
HWKG Hose Clamps are known for being strong and reliable. Their products help plumbers make tight, lasting pipe connections. As plumbing changes, picking trusted products like HWKG Hose Clamps gives better results and helps people worry less.
