china quick release hose clamp manufacturer
Quick release hose clamp is worm gear driven clamps, widely used in pipe connections, industrial equipment, municipal facilities, agricultural irrigation, and communications. They have excellent corrosion and rust resistance, can be used stably in various complex humid environments, have a long service life, and are quick-release type, making installation and disassembly convenient and significantly improving work efficiency. They have strong clamping force, providing a stable and reliable clamping effect and are not easy to loosen.
basic structure of quick release hose clamp

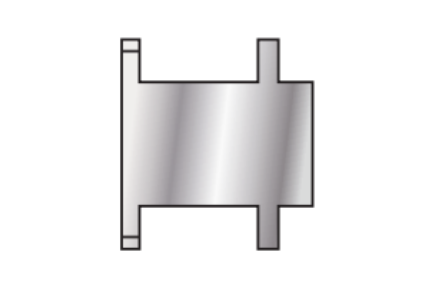

quick lock housing
Optional materials include 300 series stainless steel and carbon steel, with available surface treatments such as passivation electroplating, and Dacromet coating

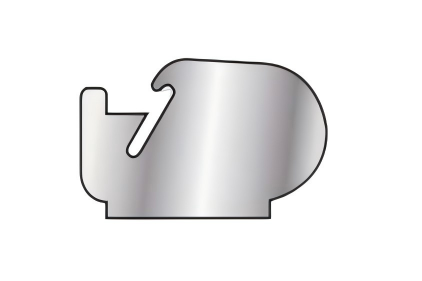

housing
Equipped with a reliable locking mechanism

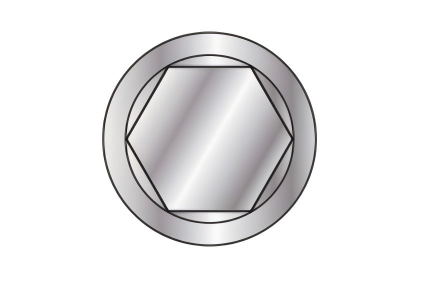

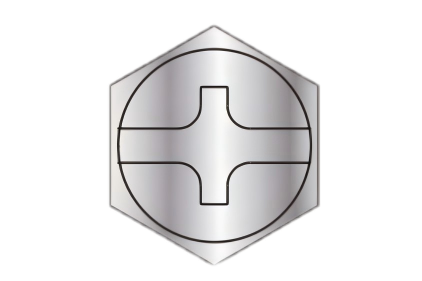

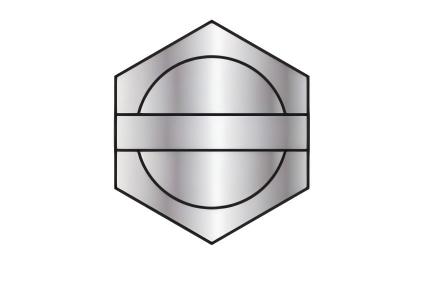

screw
Multiple head designs, a variety of materials, and head sizes are available for selection
band
One-piece steel stripwith dependable strength
KZ09Q
Band
Stainless Steel
Housing
Stainless Steel
Quick Lock Housing
Stainless Steel
Hex Head
Stainless Steel
KZ09B
Band
Stainless Steel
Housing
Stainless Steel
Quick Lock Housing
Stainless Steel
Hex Head
Stainless Steel
KZ12Q
Band
Stainless Steel
Housing
Stainless Steel
Quick Lock Housing
Stainless Steel
Hex Head
Stainless Steel
KJ14Q
Band
Stainless Steel

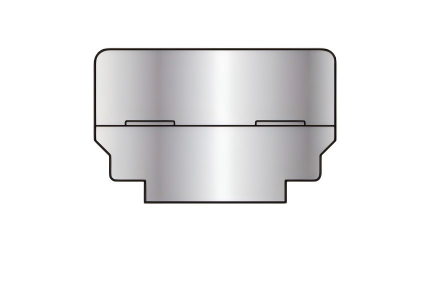

Upper Cover/Base
Stainless Steel
Hex Head
Stainless Steel
9mm quick release hose clamp assembly
9mm quick release hose clamp
quick release hose clamp Parameters
quick release hose clamp configuration table
| SPECIFICATION | MATERIAL | BAND | QUICK LOCK HOUSING | HOUSING | SCREW |
| KZ09B | W2 | 300/400 series stainless steel | 300 series stainless steel | 300/400 series stainless steel | carbon steel |
| KZ09Q/KZ12Q/K14Q | W4 | 300 series stainless steel | 300 series stainless steel | 300 series stainless steel | 300 series stainless steel |
| W5 | 316 stainless steel | 316 stainless steel | 316 stainless steel | 316 stainless steel | |
| Customization of specifications and material configurations is available based on customer requirements. The above information is for reference only and should not be considered as technical specifications. | |||||
quick release hose clamp specification table
| RANGE | SPECIFICATION | |
| RANGE mm | KZ12Q | KJ14Q |
| 40-90 | • | |
| 40-110 | • | • |
| 30-125 | • | • |
| 60-127 | • | • |
| 48-140 | • | • |
| 50-145 | • | • |
| 60-150 | • | • |
| 40-160 | • | • |
| 51-178 | • | • |
| 40-180 | • | |
| 80-200 | • | • |
| 50-215 | • | • |
| 51-254 | • | • |
| 50-375 | • | • |
| 114-400 | • | • |
| 51-530 | • | • |
| 50-570 | • | • |
| 50-630 | • | • |
| 51-690 | • | • |
| 50-730 | • | • |
| 50-830 | • | • |
| 600-950 | • | • |
| RANGE | SPECIFICATION | |
| RANGE mm | KZ09Q | KZ09B |
| 32-50 | • | • |
| 40-60 | • | • |
| 50-70 | • | • |
| 60-80 | • | • |
| 70-90 | • | • |
| 25-100 | • | • |
| 25-125 | • | • |
| 25-150 | • | • |
| 25-175 | • | • |
| 25-200 | • | • |
| 25-225 | • | • |
| 25-275 | • | • |
| 25-300 | • | • |
| 25-350 | • | • |
| 25-400 | • | • |
| 25-450 | • | • |
| 25-500 | • | • |
| 25-550 | • | • |
| 25-600 | • | • |
| 25-650 | • | • |
| 25-700 | • | • |
| 25-750 | • | • |
