No hub couplings deliver outstanding leak-proof performance and feature effortless installation, fitting seamlessly into a wide range of plumbing systems. Favored for their durable service life and cost-saving benefits, they do come with certain limitations such as working pressure constraints. Overall, they remain a practical and reliable pipe connection solution for both residential and commercial use.
Key Takeaways
- Hubless joints, equipped with robust rubber gaskets and stainless steel covers, effectively prevent leaks, making them an ideal choice for plumbing projects. Installation is quick and easy, taking only 1 to 2 minutes, helping to save time and costs in plumbing work. Regular inspections and ensuring proper installation are essential for maintaining the good performance of hubless joints. With proper maintenance, their service life can exceed 20 years.
No Hub Couplings Performance
Leak Prevention
Hubless fittings help prevent leaks in drainage, ventilation, and air conditioning (DWV) systems. They use high-strength rubber gaskets and stainless steel sealing rings to form a tight seal between pipes, preventing water and wastewater leaks. The seal remains effective even with pipe vibration or pressure changes.
The table below compares hubless fittings with traditional hub fittings:
| Feature | No Hub Couplings | Traditional Hub Couplings |
|---|---|---|
| Leak Prevention | Reliable, leak-proof performance | Prone to degradation over time |
| Material Quality | High-quality rubber gaskets and stainless steel shields | Varies, may degrade due to joint fatigue |
| Durability | Maintains integrity over time | May suffer from joint fatigue |
| Pressure Resistance | Designed for high-pressure applications | Limited pressure resistance |

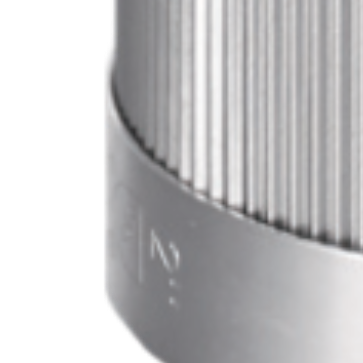

Hoopless pipe fittings are suitable for cast iron, ABS, and PVC pipes. Their protective shield design, featuring a wide stainless steel band, helps maintain pipe alignment and a tight connection. The stainless steel band and rubber gaskets ensure a strong seal and prevent tree roots from entering. These features effectively prevent water from seeping into or out of the pipes.
Some brands, such as Hengwei, use higher-quality materials and more refined manufacturing processes to ensure that each fitting fits perfectly and is durable. High-quality products help prevent leaks in homes and commercial establishments.
Long-Term Reliability
Hoopless pipe fittings have a long service life. Their stainless steel components are resistant to rust and damage. The rubber gaskets can withstand sunlight and sewage fumes, maintaining a seal for many years.
The following are some design features that contribute to the reliability of hoopless pipe fittings:
| Design Feature | Contribution to Reliability and Leak Prevention |
|---|---|
| Increased band tension | Forms a watertight seal and keeps pipes secure |
| Sealing ‘O’ Rings | Prevents pipe slippage and reinforces the joint |
| Stainless steel components | Resist corrosion and physical damage |
| Expanded stainless steel shield | Enhances load bearing and supports pipe alignment |
| Thicker, corrugated shear band | Controls load and resists shear forces |
| Independent clamp tightening | Adapts to different pipe sizes for a proper fit |
| Molded rubber gasket | Withstands tension, compression, and environmental stress |
Installers should follow the tightening instructions, which helps ensure a uniform seal. Checking for rust and ensuring the clamps are tight helps extend the coupling’s lifespan.
Hunchbackless couplings function properly in both hot and cold weather. If installed correctly, they will remain secure. Problems such as misaligned pipes or overly tight clamps can be avoided. Careful installation and regular inspections help prevent these issues.
Advantages of hubless joints
Quick Installation
Socketless fittings are quick to install. Workers can complete the installation in just 1 to 2 minutes. Lead strip and oak fittings, on the other hand, take much longer, sometimes 15 to 30 minutes. Socket fittings also require more time and specialized skills. Large projects using socketless fittings can be completed much faster. This not only saves on labor costs but also helps to finish the work on time.
Versatile Applications
Socketless fittings can connect a variety of pipe types. They are suitable for cast iron pipes, plastic pipes, and steel pipes. The table below lists the applicable materials and sizes:
| Material Grade | Size Range |
|---|---|
| 304/316 Stainless Steel | 1″ to 6″ |
| 304 Stainless Steel | 2″ to 8″ |
| 316 Stainless Steel | 1.5″ to 4″ |
| 304L Stainless Steel | 3″ to 10″ |
| Duplex Stainless Steel | 2″ to 12″ |
| Cast Iron | 1.5″ to 10″ (custom up to 15″) |
Socketless fittings can connect pipes of different materials. They feature neoprene gaskets and stainless steel sleeves. Even with ground movement or heavy pipes, these components ensure a strong and reliable connection.
Noise Reduction
Flexible fittings help reduce vibration by up to 70%. This significantly reduces water hammer problems in high-rise buildings. People also hear less pipe noise.
Long Service Life
Socketless fittings are less prone to rust or breakage. Stainless steel strips and flexible gaskets effectively protect against water and chemical corrosion. Special coatings, such as OnyxShield™, provide extra protection in humid environments. These materials help extend the service life of the fitting.
Disadvantages of Socketless Fittings
Thrust and Separation Risks
Holeless joints are prone to problems at high water flow rates. If workers do not use restraint devices, the pipes may shift or detach. This can lead to leaks or even flooding. The table below lists real-world examples of problems caused by thrust and separation:
| Incident Description | Result | Cause |
|---|---|---|
| Lucas Oil Stadium Disaster | Flooding and equipment damage | Lack of no-hub fitting restraints during heavy rain |
| Translational Medical Research Facility Failure | Flooding due to pipe separation | Insufficient thrust resistance in the absence of restraints |
In areas with rapid water flow, workers must use restraint devices. This secures the pipes and prevents costly damage.
Pressure Limitations
The maximum pressure for hubless fittings is 4.3 PSI (29.6 KPA). They are best suited for drainage, sewage, and ventilation ducts. They are not suitable for high-pressure water pipes. Excessive pressure can cause leaks or joint rupture.
Installation Precautions
Installing the shaftless coupling requires extreme care and the use of appropriate tools. A torque wrench is needed to precisely tighten the clamps. Applying too much or too little force can cause seal failure. Most professionals consider installation simple, but those attempting to install it themselves may require practice.
Maintaining the shaftless coupling is also straightforward. Simply check for leaks and ensure the clamps are tightened. The shaftless coupling is easily visible and accessible, making maintenance quick.
Hubless fittings effectively prevent leaks, are easy to install, and are suitable for various piping projects. Before use, the thrust and pipe dimensions must be checked. The table below lists important considerations:
| Factor | Description |
|---|---|
| Thrust forces | Test for leaks if forces go over 10 feet |
| Large pipe size | Use restraints for pipes that are 5 inches or bigger |
FAQ
What types of pipes can uncoiled pipe fittings connect to?
Uncoiled pipe fittings can connect cast iron pipes, PVC pipes, and ABS pipes. They are available in various sizes and can be used in residential and commercial plumbing systems.
How long is the service life of uncoiled pipe fittings?
Their service life typically exceeds 20 years. The stainless steel and rubber materials offer rust resistance and wear resistance, helping them remain robust and durable for a long time.
Are special tools required to install uncoiled pipe fittings?
Installers use a torque wrench to tighten the pipe fittings. This tool ensures the correct pressure and helps prevent leaks.
